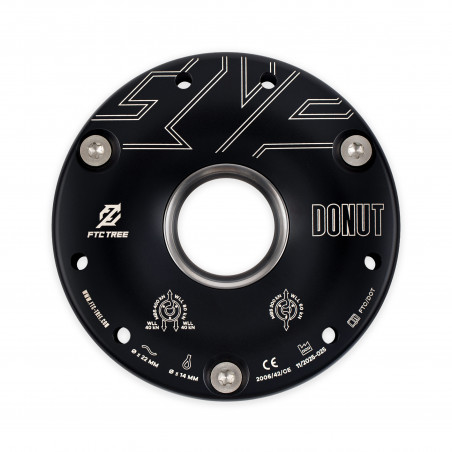

DONUT
The first round block on the market, designed for rigging and tailored for field action.
#TASTYPULLEY
DONUTRigging loads in trees sometimes means implementing complex systems, so your gear must rise to the challenge. The DONUT helps you in all situations, no compromise on safety or work flow. From the simplest rigging scenario to the most complex ones, involving several ropes at the same time.
Description

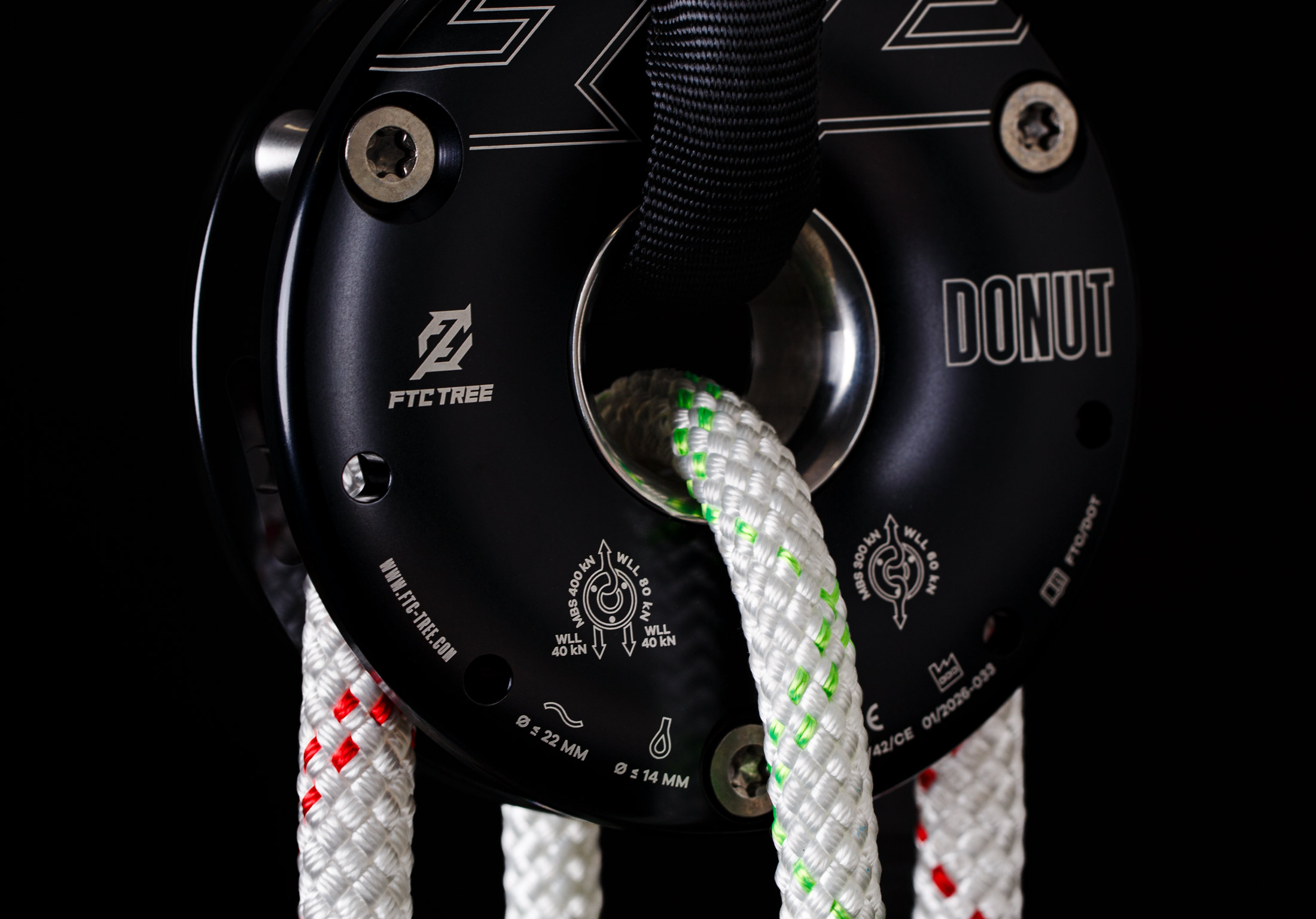

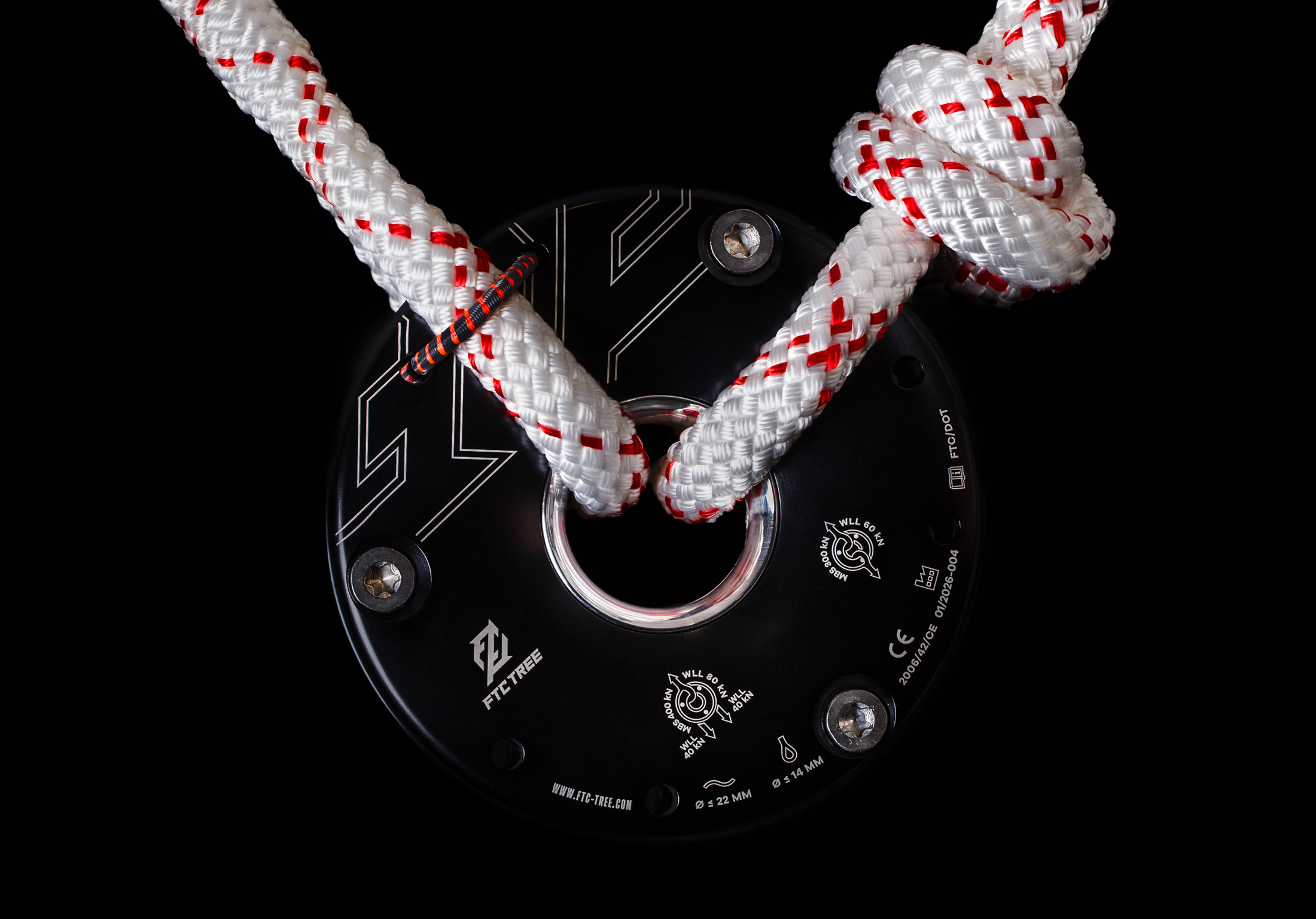

A fusion between a rigging block and a friction ring, the DONUT offers the best of both worlds, separate or combined. Choose to use the sheave to lift or move a load, or the central part for useful friction when rigging. Need both? The DONUT will take two ropes simultaneously to help you manage complex situations, i.e. a heavy load or a delicate load transfer.
Friction is a vital element of rigging, especially for dynamic rigging works. It reduces the effort on the cylinder and helps the ground man control the speed of the load during the descent. The increased control contributes to the climber’s safety and that of the team by minimising the risks linked to abrupt or uncontrolled movements.
Round shape, simpler operations. The DONUT is efficient, but not just that. It is also ingenious. The round shape limits wrong positions and reduces the risk of overhanging. It is also easier to set up, even between two axes. The symmetry also allows the use with several slings to adjust its placement with more precision.
It can be used on the ground, as a redirect for instance, or up in the tree, and has a great ratio weight/WLL for its category. One more asset in demanding rigging configurations.
Developed from field feedback, the DONUT pulley embodies the FTC TREE philosophy: a reliable tool, adapted to all constraints yet not over-complicating the work. Sheave, friction, two ropes, set up between axes… the DONUT expands opportunities without too much fuss.
Versatile, robust, safe.
Technical data
| Standard | Machinery Directive 2006/42/EC |
| Material |
|
| Colours | Black and steel colour |
| Dimensions | 15.7 x 15.7 x 5 cm (6.2 x 6.2 x 2 in) |
| - |  |
| Diameter(s) |
Inner: 13 mm (D1) Exterior: 89 mm (D2) Groove: 25 mm (D3) |
| Max. rope diameter (D1 and D3) | ⌀22 mm (⌀14 mm with splice) |
| Weight | 1.6 kg (3.5 lb) |
| Breaking strength |
|
| Working Load Limit (WLL) |
|
Complement
Extra versatile
Its uses are many and with next to no limits. Combining friction and a very large sheave into one tool made the DONUT the most adaptable rigging pulley on the market. Redirect, two ropes… the DONUT faces all configurations without multiple systems.
Exclusive design
The compact, perfectly round shape limits mispositionning and reduces overhangs. It enables multiple anchor points, between two axes or with several slings, to place the block right where you need it.
Light. Robust. Powerful.
Aluminium body with hard anodising, stainless steel inner ring - the DONUT was developed to resist. While being very light, it can be used with heavy loads and meets the demands of the heaviest rigging works. It has the best weight/performance ratio on the market. A reliable tool for pros with high expectations.
SPARE PARTS
| References | Produit |
| FTC/DOT-E | Spare elastic |
