TENEX DNA
The sling that combines speed and reliability: an intuitive system of loops with a spliced in FRICTION RING for secure and efficient anchors.

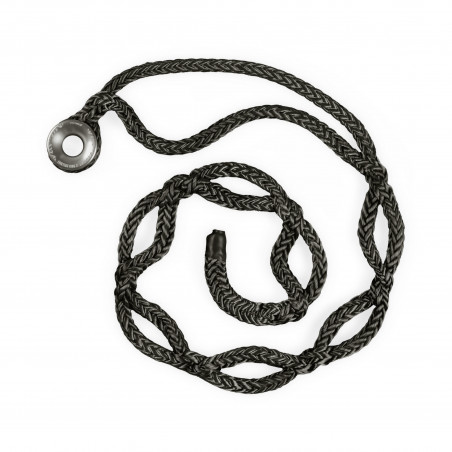

The loop sling TENEX DNA stands for quick and secure work. It is set up in a move, on a trunk or any fix point, and is adjusted in a tick with the loops. The system offers a stable, reliable anchor -even under the most demanding conditions.
Description
The TENEX DNA is the sling in the FTC TREE × SAMSON range that is the most quickly and intuitively set up. It has been developed with Tenex™, with Samthane® coating, combining flexibility, high performance and simple use for all kinds of rigging works.

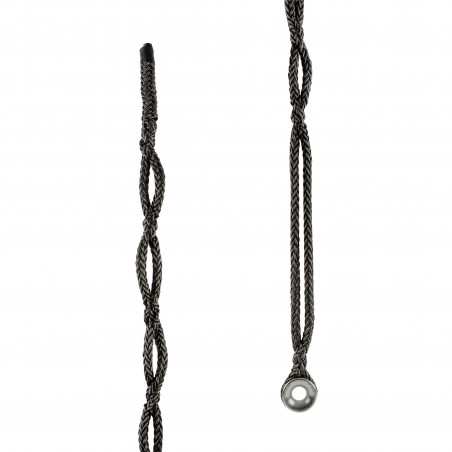

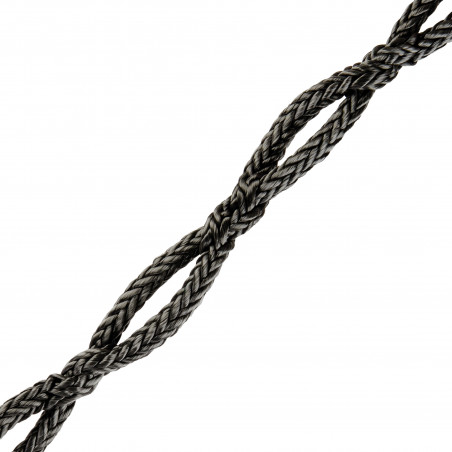

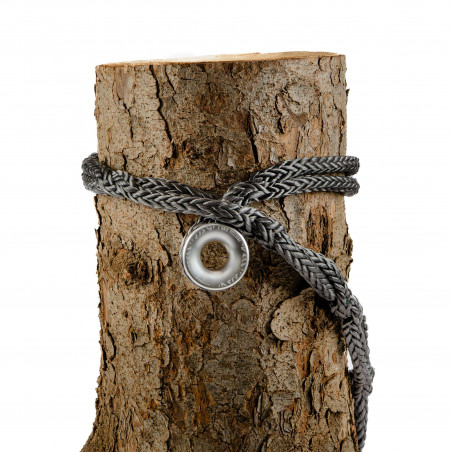

It is ready for use: the loops help to set it up in one move. Pulling the end with the ring through one of the loops, the user will instantly adjust the length, and this will limit the risk of the sling sliding, even under heavy loads. The first loop is larger, to enable the adjustment for trunks with smaller diameters and various configurations.

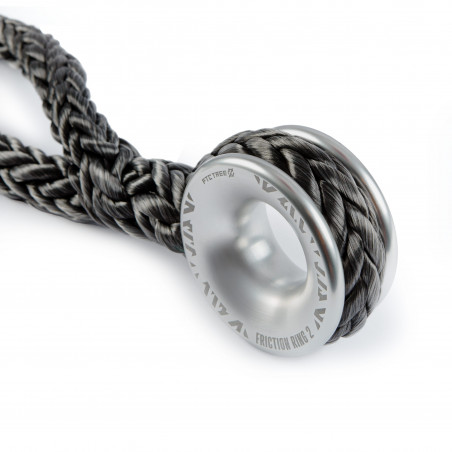

Our FRICTION RING is integrated to the splice, which makes for a reliable, efficient friction point and simplifies rigging works without adding accessories. Low friction rings enable a constant control of friction and work perfectly with textile gear, even in difficult conditions. Their round shape, as their name suggests, avoid the concentration of the friction on one area, limiting the premature wear of the system. Those rings are the result of years of experience… and it works.
The sling comes in several standard lengths of one diameter, non-standard lengths can be spliced on special order. It is a quick, reliable and versatile tool for arborists, thought out to optimise any work.
Technical data
| TENEX DNA | ||
| ROPE | FRICTION RING FR2 | |
| - | ![]() |
|
| Standard | Machinery Directive 2006/42/EC | |
| Material | 100% polyester, Samthane®-coating | High resistance, anodised aluminium |
| Width | - |
35 mm (E) |
| Diameter(s) | ⌀16 mm |
Inner: ⌀28 mm (D1) Exterior: ⌀70 mm (D2) Groove: ⌀20 mm (D3) Max. rope diameter (D1 and D3): ⌀20 mm |
| Corresponding trunk diameter | Max. 0.60 m (2 m/5.6 ft sling) Max. 0.90 m (3 m/9.8 ft sling) |
|

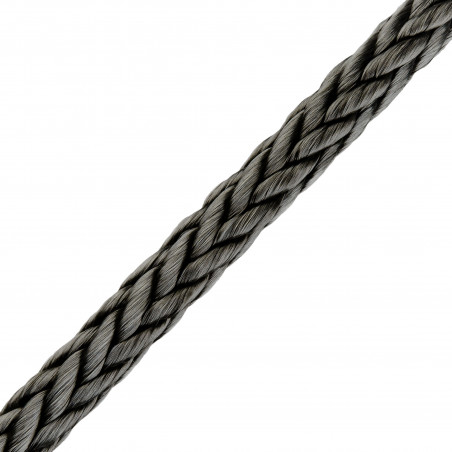

| Construction | Hollow braid - 12 strands | - |
| Couleur | Black | Aluminium |
| Weight | 1.05 kg / 2.31 lb (2 m) 1.57 kg / 3.46 lb (3 m) |
|
| MBS | 117 kN (with splice) |
|
| WLL | 16,7 kN |
|
