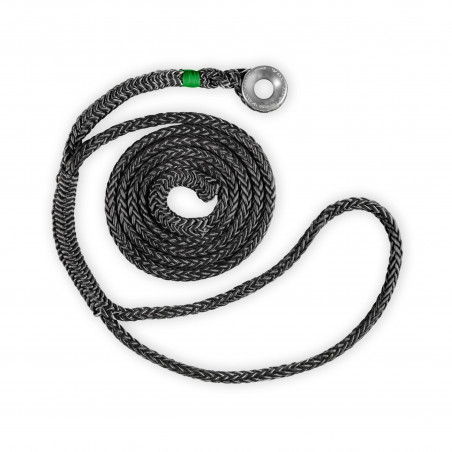

VIPÈRE TENEX R SLING
With a quick and precise use, the Tenex™ adjustable sling with spliced in ring makes for reliable and efficient anchors.
The VIPÈRE TENEX R sling combines flexibility, safety and instant adjustment. It is adjusted in one move, by simply sliding the rope, and offers a reliable support even under heavy load. It is sold with a FRICTION RING spliced in, for an efficient friction element to be used right out of the bag.
Description

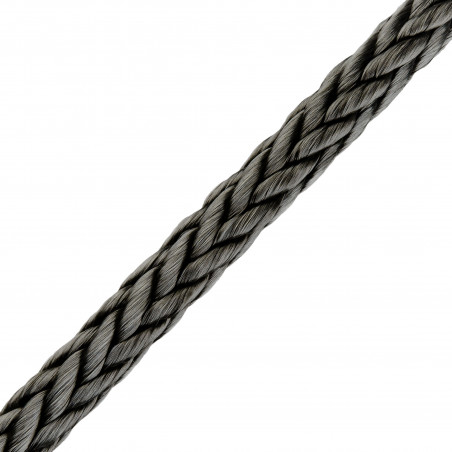

The VIPÈRE TENEX R is an adjustable sling with intuitive use espacially developped for rigging works. We use Tenex™, with Samthane®-coating, for a combination of nice handling, robustness and flexibility - the result is a reliable solution for all kinds of rigging work.

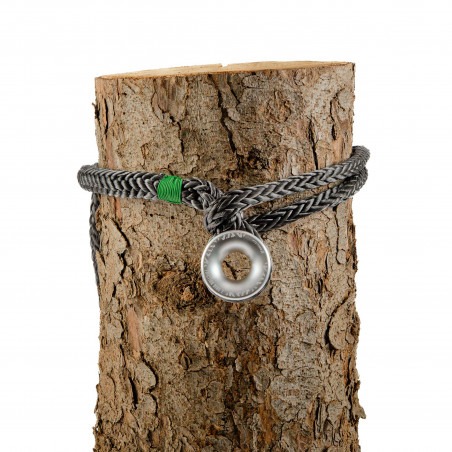

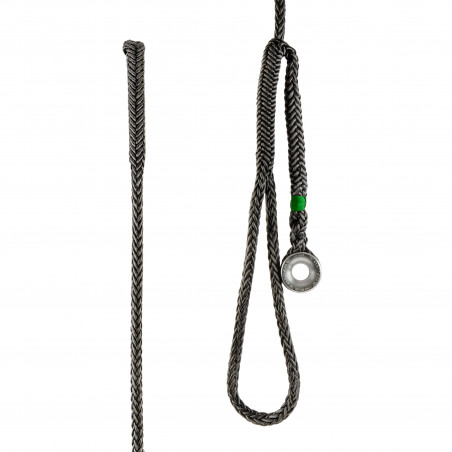

The principle is simple yet efficient: the sling is positioned with one move, then slided for quick adjustment. This system allows for quick length adjustment while offering a great support, even under heavy loads.

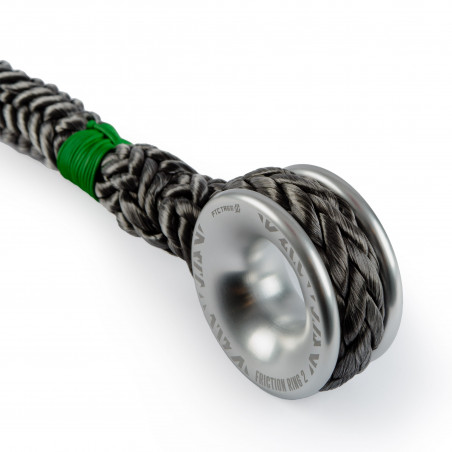

It is equiped with a FRICTION RING, an efficient friction element to secure and simplify your work, no need for additional accessories. Low friction rings enable a constant control of friction and work perfectly with textile gear, even in difficult conditions. Their round shape prevents the friction concentration on one smaller area and limits avoids a premature wear of your system. Those rings are the result of years of experience… and it works.
The VIPÈRE TENEX R sling is available in two diameters and several standard lengths. It can also be made in non-standard lengths for specific needs. It is a simple, very light, reliable and versatile tool that helps arborists quickly set up reliable and efficient anchors.
Technical data
| VIPÈRE TENEX R 14 | ||
| ROPE | FRICTION RING FR2 | |
| - |  |
|
| Standard | Machinery Directive 2006/42/EC | |
| Material | 100% polyester, Samthane®-coating | High resistance, anodised aluminium |
| Width | - | 35 mm (E) |
| Diameter(s) | ⌀14 mm |
Inner: ⌀28 mm (D1) Exterior: ⌀70 mm (D2) Groove: ⌀20 mm (D3) Max. rope diameter (D1 and D3): ⌀20 mm |
| Corresponding trunk diameter |
max. 0.45 m (1.5 m sling - 4.9 ft) |
|
| Construction | Hollow braid - 12 strands | - |
| Colour | Blue | Aluminium |
| Weight | 0.70 kg / 1.54 lb (1,5 m) 1 kg 2.20 lb (2,5 m) |
|
| MBS | 129 kN (with splice) |
|
| WLL | 18,4 kN |
|
135 kN
260 kN| VIPÈRE TENEX R 16 | ||
| ROPE | FRICTION RING FR2 | |
| - | |
|
| Standard | Machinery Directive 2006/42/EC | |
| Material | 100% polyester, Samthane®-coating | High resistance, anodised aluminium |
| Width | - | 35 mm (E) |
| Diameter | 16 mm |
Inner: 28 mm (D1) Exterior: 70 mm (D2) Groove: 20 mm (D3) Max. rope diameter (D1 and D3): ⌀20 mm |
| Corresponding trunk diameter | max. 0.75 m (2.5 m sling - 8.2 ft) max. 1.10 m (3.5 m sling - 11.5 ft) |
|
| Construction | Hollow braid - 12 strands | - |
| Colour | Black | Alminium |
| Weight | 1.25 kg / 2.76 lb (2,5 m) 2.9 kg / 6.39 lb (3,5 m) |
|
| MBS | 149 kN (with splice) |
|
| WLL |
21,2 kN |
|
